Product attributes
Brand：EVERTOP
Models： DCGF18-18-6
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

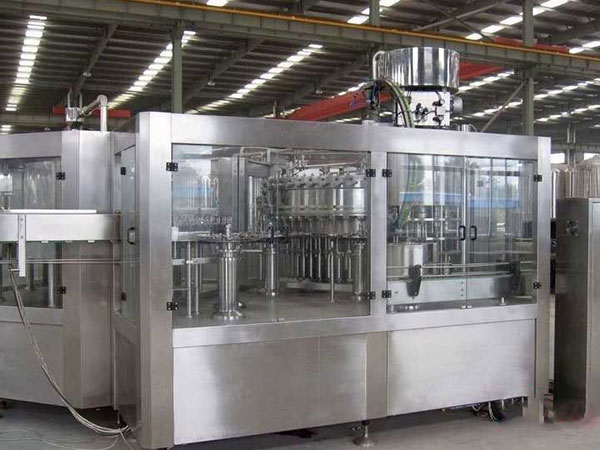

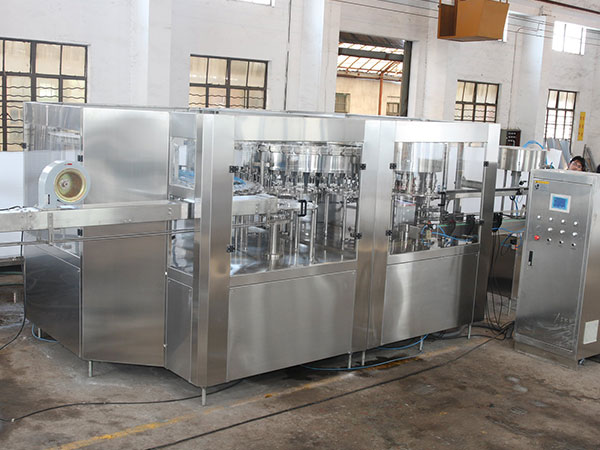

This bottle carbonated beverage filling machine 3-in-1 mono-bloc is used in the PET bottle filling carbonated beverage (gas containing beverage), such as cola, soda water, sparkling wine etc. It is combined with bottle washing, filling and capping into one machine.
This carbonated filling mono-bloc is made of stainless steel. It has compact structure, good appearance, scientific and reasonable design. It is available for the bottles from 200ml to 2000ml.
It adopts the technology of direct contact with air conveyor, taking stead of the feeding screw and conveyors, which making it much more convenient to change the bottle shape.
This machine adopts advanced bottle neck clamping system, which get rid of the requirement of bottle height. So there is very a few parts need to change while different bottles are used on the same machine, such as the guide plate and the poking wheel.

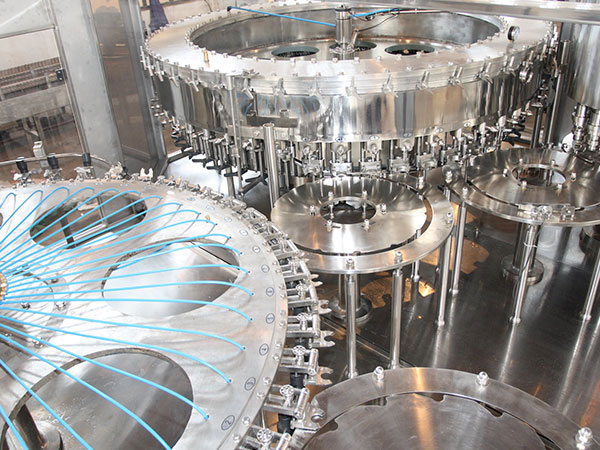

Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.

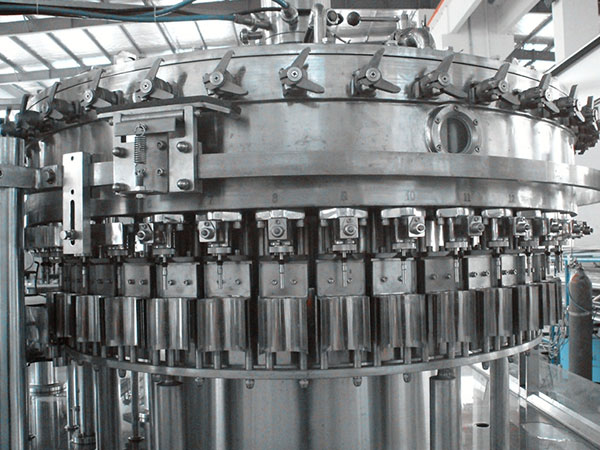

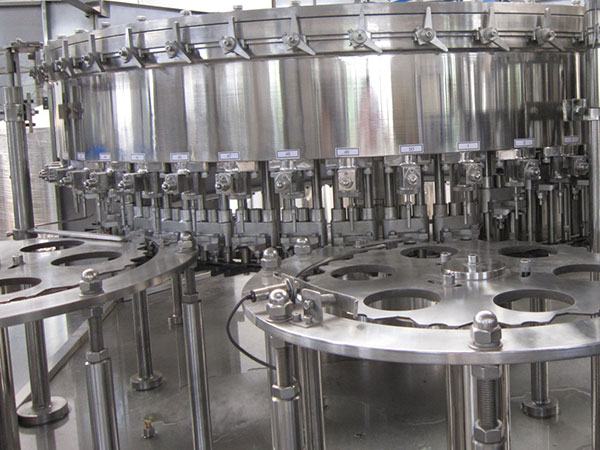

It is equipped with high-speed filling valve of high precision filling.

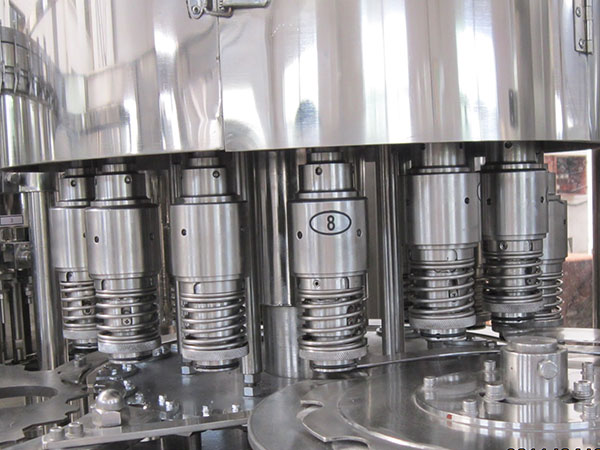

The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficiency cap settling system, cap feeding system and no bottle no cap system makes the whole capping system perfect.
It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
This carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brand.
| Model: | DCGF12-12-5 | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 |
| Capacity:500ml | 2000-3000bph | 3000-4000bph | 4000-5000bph | 5000-8000bph |
| Bottle shape: | round or square | |||
| PET bottle: (mm) | (Bottle Diameter): φ50-φ110mm, (Height): 150-310mm (Volume: 250ml -2000ml) | |||
| Cap: | Plastic screw cap | |||
| Filling precision: | ≤±5mm | |||
| Power (KW) | 3.0 | 4.0 | 4.2 | 5.2 |
| Filling pressure: (MPa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
| Rinsing pressure: (MPa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
| Overall size:(mm) | 1900*1500*2350 | 2250*1650*2350 | 2600*1965*2350 | 2980*2200*2250 |
| Weight: (KG) | 3000 | 3500 | 4000 | 4500 |
| Model: | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 | DCGF60-60-15 |
| Capacity:500ml | 8000-10000bph | 10000-15000bph | 16000-20000bph | 20000-24000bph |
| Bottle shape: | round or square | |||
| PET bottle: (mm) | (Bottle Diameter): φ50-φ110mm, (Height): 150-310mm (Volume: 250ml -2000ml) | |||
| Cap: | Plastic screw cap | |||
| Filling precision: | ≤±5mm | |||
| Power(KW) | 6.2 | 7.5 | 8.5 | 9.8 |
| Filling pressure: (MPa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
| Rinsing pressure: (MPa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
| Overall size:(mm) | 3880*2200*2250 | 4000*2250*2250 | 5500*3500*2250 | 6500*5500*2250 |
| Weight: (KG) | 6000 | 7000 | 8200 | 9500 |
