Product attributes
Brand：EVERTOP
Models： BCGF24-24-8
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

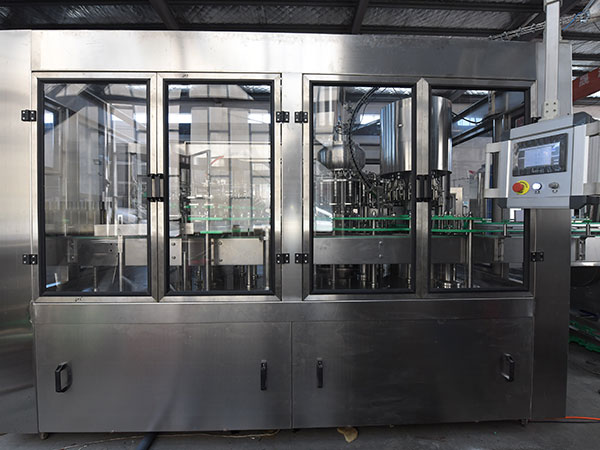

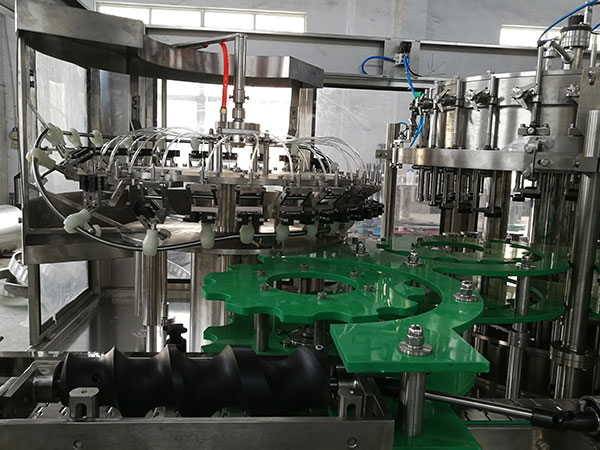

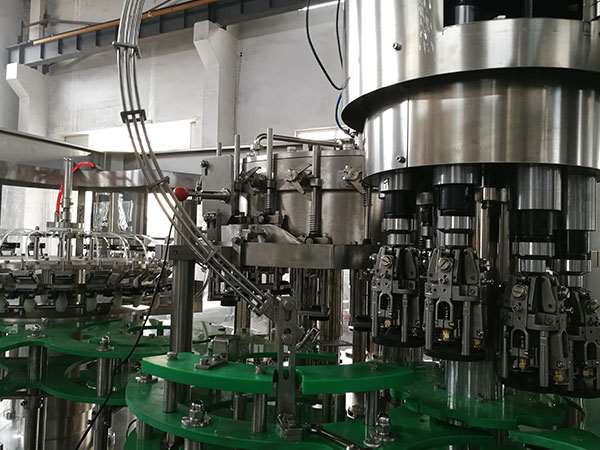

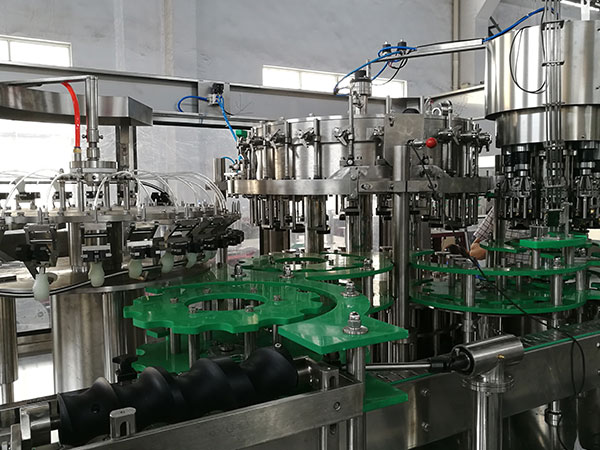

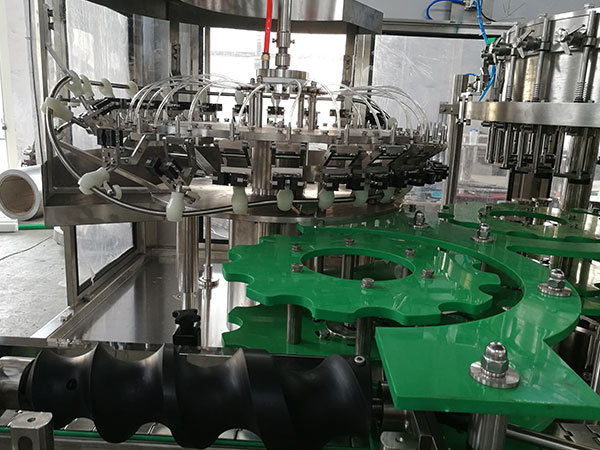

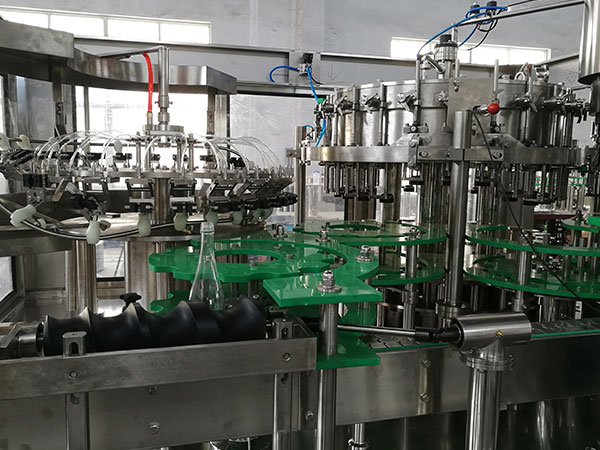

This glass bottle filling machine can fill sparkling wine, sparkling water, soda drink, soda water, carbonated soft drink/ beverage, carbonated wine in glass bottles.
The filling valve adopts high precision mechanical filling, with the character of no bottle no filling.
Open gear combined gear box transmission, with on-off device. Frequency conversion velocity modulation device extends the speed modulating scope.
This machine has self-lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.
Centering guide is of double guide bar type, with the function of pre-covering.
Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.
The material level in the tank is controlled by electric probe to assure the precise liquid level.
Independent electricity box makes sure every electrical appliance works normally.
With PLC and touch screen control, electric parts are from world famous brands.
It has the advantages of smooth operation, reliable motion, high efficiency and easy operation. All the processes are controlled by PC program.
| Model | BXGF16-12-6 | BXGF18-18-6 | BXGF24-24-8 | BXGF32-32-10 | BXGF40-40-12 |
| Production capacity(b/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-12000 |
| Suitable bottle diameter(mm) | φ=50-110mm H=170-310mm (Volume: 100-1000ml) | ||||
| Main Motor power | 4.0kw | 4.2kw | 5.2kw | 6.2kw | 7.5kw |
| Overall dimension (L x W x H) mm | 2230×1630×2250 | 2600×1965×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 |
| Weight (Kg) | 3500 | 4000 | 4500 | 6000 | 7000 |
