Product attributes
Brand：EVERTOP
Models： QGF
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD5,000 – 150,000per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

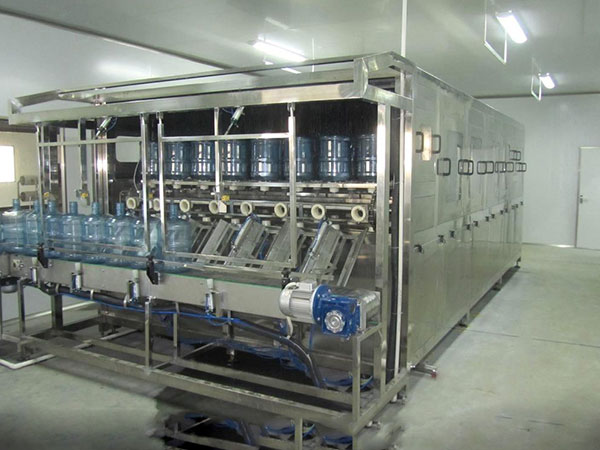

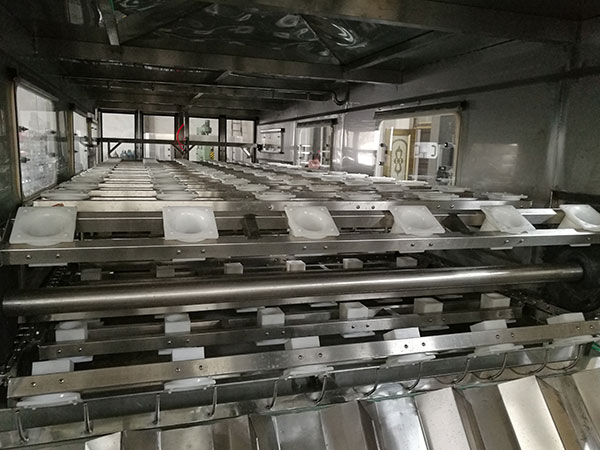

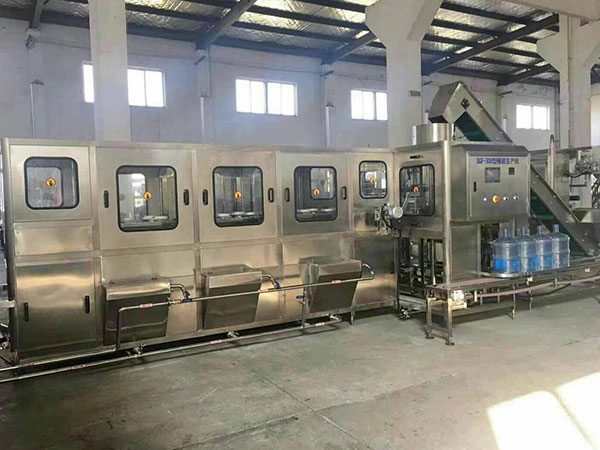

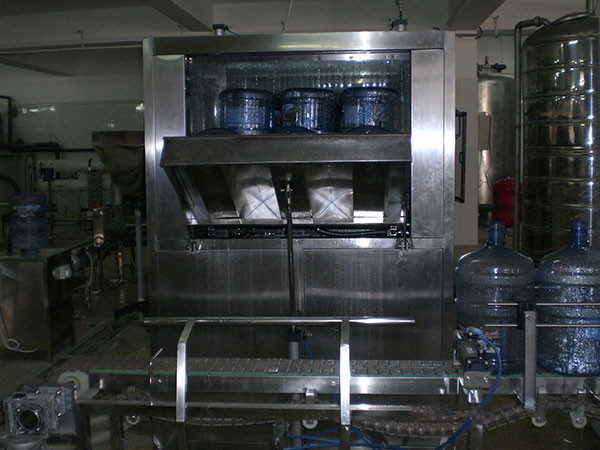

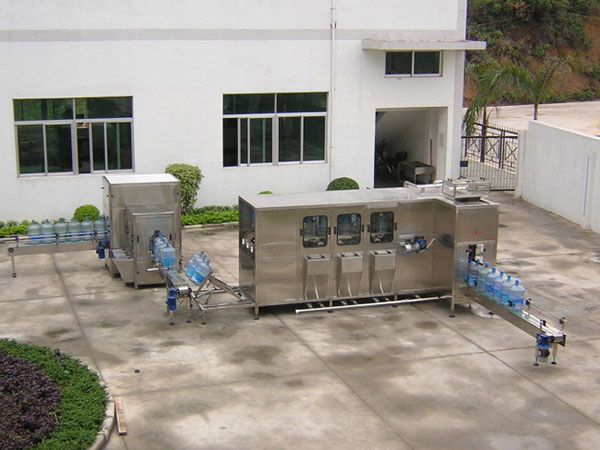

This 5 Gallon Bottle Barrel Drink Water Filling Machine is special for 3 to 5 gallons bottle barrel drinking water, with model QGF series of full sets of filling and packing machines.
It integrates barrel washing, filling and capping into one unit.

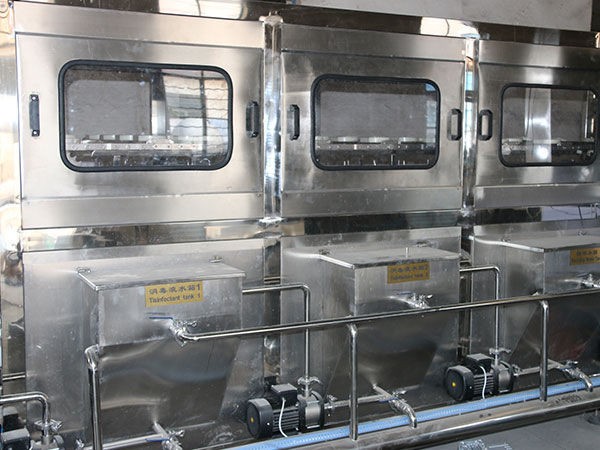

In order to achieve the purpose of washing and sterilizing, the washing machine uses multi-washing liquid spray and detergent spray. This detergent can be used circularly.
The capping machines can cap barrel automatically.
This line equips with water spray device in order to ensure those caps sterile and clean.
It also can automatically carry out the barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation.
It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity, and pneumatics technologies together.
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 1 | 2 | 3 | 4 | 6 | 12 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Bottle size(mm) | Ф270×490 | Ф270×490 | Ф270×490 | Ф270×490 | Ф270×490 | Ф270×490 | Ф270×490 |
| Capacity | 100B/H | 150B/H | 300B/H | 450B/H | 600B/H | 900B/H | 1200B/H |
| Gas pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power (Kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight (Kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
