Product attributes
Brand：EVERTOP
Models： XGF
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 10,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

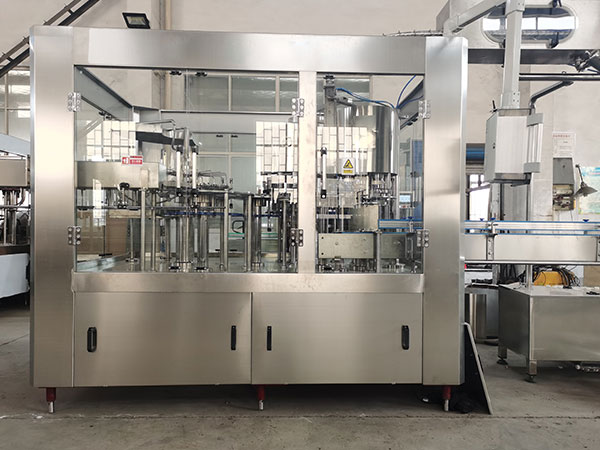

This machine contains washing, filling and capping with full automation.
It is suitable for filling water, such as mineral water, pure water into plastic bottles, etc.
The bottle neck blocking makes the process of changing bottles easily by only adjusting the bottle outlet start wheel.
The filling process adopts micro-vacuum technology, which makes filling process faster and more reliable.
Characteristics:
1.Air conveyor connecting with bottle-instar wheels. Bottle neck holding transferred.
2.Clamp transferring technology varied bottle types.
3.With little abrasion, stable transferring, easy to change bottles.
4.With ring type pressure bearing hydraulic cylinder.
5.With high filling speed and exact liquid level.
6.Excellent stainless steel. Electric components are from world famous brands. All achieves national sanitary standard.
7.The bottle-out star wheel is of screw down shape. No need to adjust transferring chain’s height to different bottles.
8.Easy to operate and maintain.
9.PLC and transducers and other main electric parts are from world famous brands, such as SIEMENS, OMRON, MITSUBISHI etc.
| Model | XGF12-12-4 | XGF16-12-6 | XGF18-18-6 | XGF24-24-8 |
| Heads of washing, filling, capping | 12/12/4 | 16/12/6 | 18/18-6 | 24/24/8 |
| Production capacity(b/h) | 2000-3000 | 3000-4000 | 5000-7000 | 8000-10000 |
| Suitable bottle diameter | φ=50-110mm H=170-310mm (Volume: 200-2000ml) | |||
| Main Motor power | 3.0kw | 4.0kw | 4.2kw | 5.2kw |
| Overall dimension (L x W x H) mm | 1900×1500×2250 | 2230×1630×2250 | 2600×1965×2250 | 2900×2200×2250 |
| Weight | 3000 | 3500 | 4000 | 4500 |
| Model | XGF32-32-10 | XGF40-40-12 | XGF50-50-15 | XGF60-60-15 |
| Heads of washing, filling ,capping | 32/32/10 | 40/40/12 | 50/50/15 | 60/60/15 |
| Production capacity(b/h) | 10000-13000 | 13000-15000 | 15000-20000 | 20000-24000 |
| Suitable bottle diameter(mm) | φ=50-110mm H=170-310mm (Volume: 200-2000ml) | |||
| Main Motor power | 6.2kw | 7.5kw | 8.2kw | 9.5kw |
| Overall dimension (L x W x H)mm | 3880×2200×2250 | 3700×3000×2350 | 4500×3500×2350 | 5500×4500×2350 |
| Weight | 6000 | 7000 | 7600 | 9800 |
